Product Specification

SKU - DHE-13331

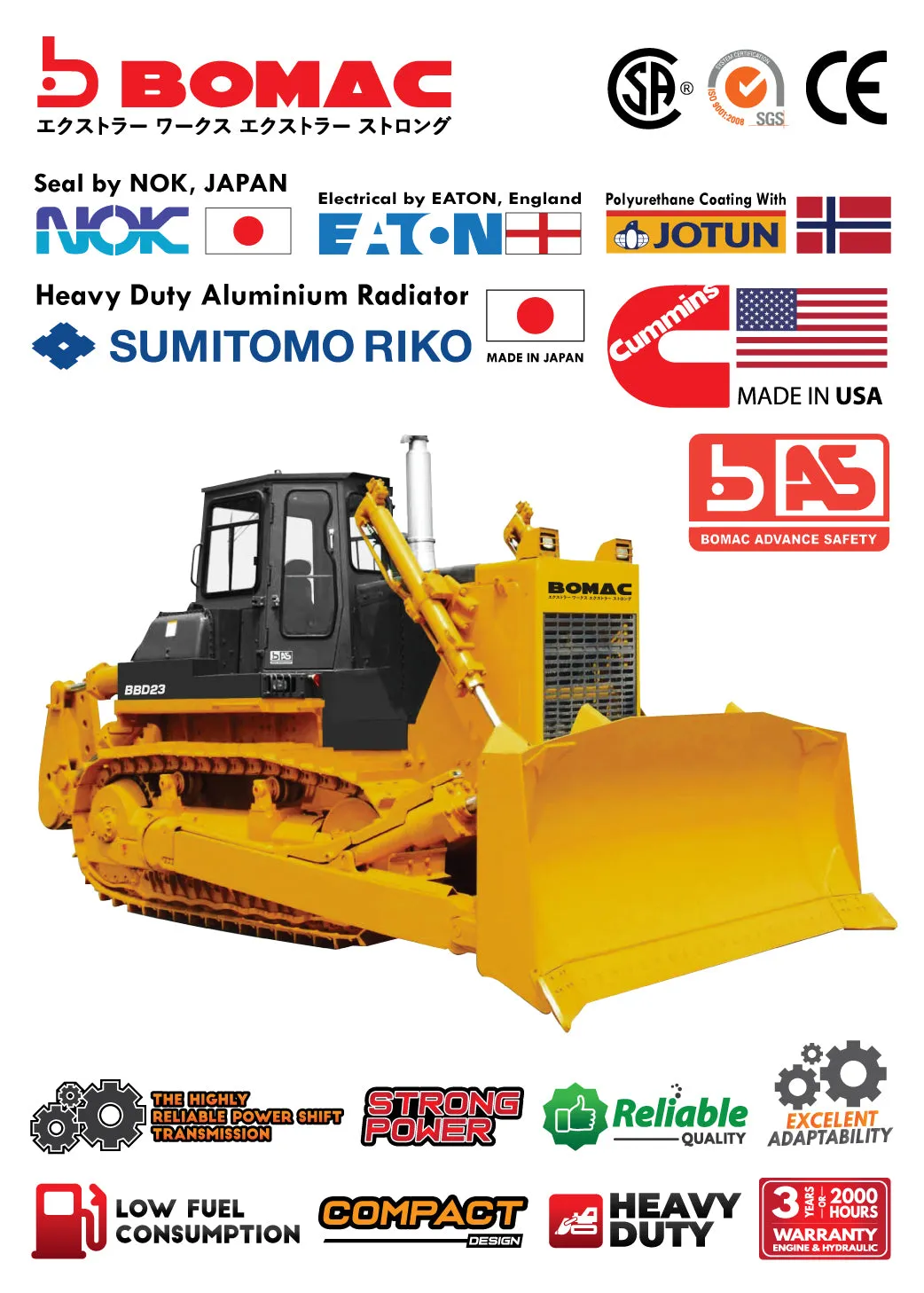

BOMAC Heavy Duty Hydraulic Crawler Bulldozer
Model : BBD23
Overall Dimension : 5460 3725 3395 mm
Operating Weight : 23500 kg
Engine Model : Cummins NT855-C280
Engine Type : Overhead valve direct injection, turbocharged
Number of Cylinders : 6
Bore Stroke : Dia. 139.7 152.4 mm
Piston Displacement : 14.01 L
Rated Power : 175 KW (238HP) @1800rpm
Max Torque : 1030 N.m @1300 rpm
Fuel Consumption : 205 g/kW.h
Final drive : 2- stage speed reduction of spur gear, splash lubrication
Travel Speed 1st Gear Forward/ Reverse : 0-3.6km/h / 0-4.3 km/g
Travel Speed 2nd Gear Forward/ Reverse : 0-6.5 km/h / 0-7.7 km/h
Travel Speed 3rd Gear Forward/ Reverse : 0-11.2 km/h / 0-13.2 km/h
Max digging depth of 3-shank ripper : 666 mm
Max lift above ground of 3-shank ripper : 555 mm
Weight of 3-shank ripper of 3-shank ripper : 2453 kg
Features :
- BOMAC Advance Safety (BAS) Package
- Heavy Duty Aluminium Radiator by Sumitomo Riko, Japan
- Heavy duty wear resistant bucket by HARDOX, Sweden
- Heavy duty polyurethane coating with JOTUN, Norway
- Electrical by EATON, England
- Seal by NOK, JAPAN
- Mainstream 14 MPa working hydraulic system
- The gearbox uses a planetary gear structure
- Overload protection function
- 3 years or 2000 hours warranty for engine and hydraulic
