Specifications |
|
|
|
|
| 1G/2G/3G 1W Touch Switch | ||

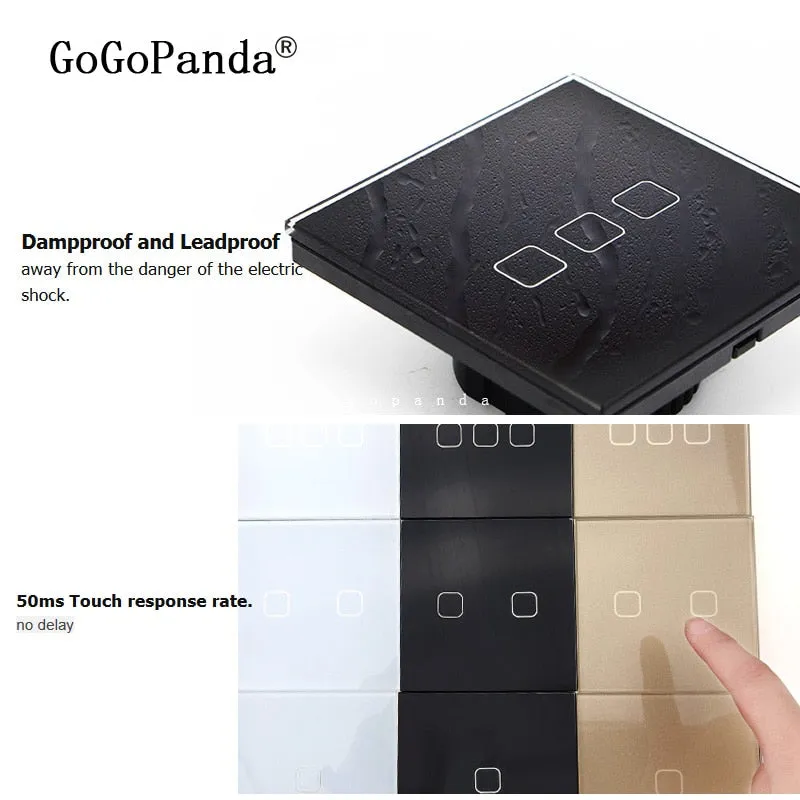

| 1.The paned is dampproof and leadproof,away from the danger of the electric shock. 2.Crystal glass panel makes it smooth and delicate,high-level enjoy. 3.50ms Touch response rate. |
||

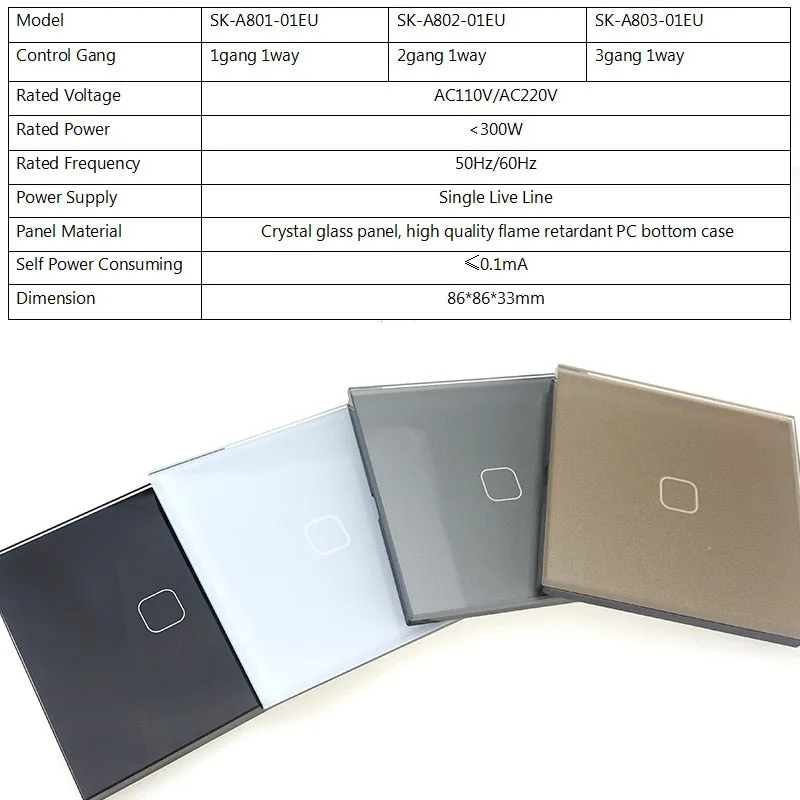

| Technical Details | ||
|
GoGoPanda
|
||
| Weight | / | Operational Environment | -30—70(°c);less than 95% RH. | |
| Rated Voltage | AC110/220V,50Hz/60Hz | Operational Life | 100,000 Times of Operations | |
| Total Rated Load | A8 series(low power) total load don't exceed 300w | Self Powerconsuming | ≤0.1mA(for Touch Switch) | |
| Dimmer switch's load don't exceed 300w |
||||
| Doorbell switch's load don't exceed 500w | ||||
|
|
||

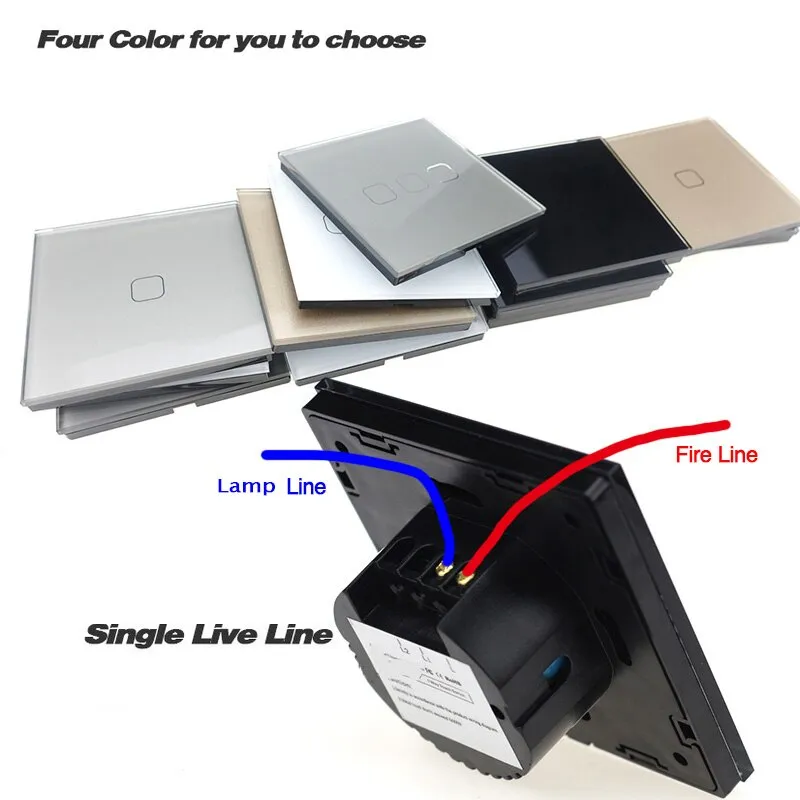

| 4 Colors for you to choose |
||
|
|
||
| Quality Accessories
|
||
|
|
||
| Crystal glass panel smooth and delicate,high-level enjoy.
|
||
| The paned is dampproof and leadproof away from the danger of the electric shock. |
|
|
| Pictures | ||
|
GoGoPanda
|
USER MANUAL
|
|
Please read the instrustions carefully befor installation. The manufacturers will not be responsible for any failure operations not follow the instrustions |
| Special attentions: |
|
| 1.Don't install with power. 2.Strictly in accordance with the product wiring diagram. 3.Switch wiring box: "UK" Standard type,size:75mm*75mm*50mm "US" Standard type,size:115mm*60mm*50mm "UK" Standard type,size:76mm*71mm*63mm 4.For first touch test without the glass panel,please power off after the first test,then fix touch switch and cover glass panel,re-power on again,and operate the touch panel switch after 5 seconds |
|

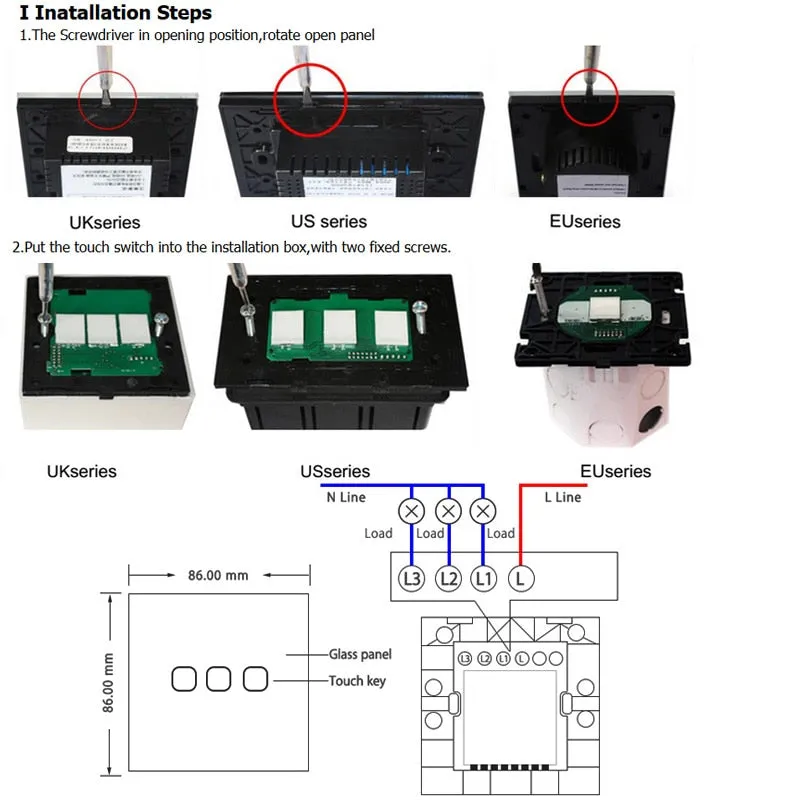

I Inatallation Steps
1.The Screwdriver in opening position,rotate open panel
2.Put the touch switch into the installation box,with two fixed screws.
II Wiring Diagram:1 Way Touch Switch with Single Wire
Fingure 1
1.With hand touch button,loads on(backlight is red);and then touch button;loads off(Backlight is green or blue)
2.Wiring diagram of Figure1.
Notes:If one branch of the switch which is not connect load has touched the button,and the others branches connect to the lamp,then the lamp will flashing without power on,it is normal.
Finnal:
1.Please use the formal company's lamps and lanterns,to avoid the flashing phenomenon when the lamp is off.
2.When using LED lamps,please use the formal company's products.Avoid the unable usage phenomenon of thw switches.
PS:If the touch switch can not operate normallu,please disconnect the input power circuit breakers,after 1 minutes(after the indicator light off) to re-open.
|
